Snaploc Battens
Trusion aluminium battens deliver a clean architectural finish with the practical performance required for modern residential and commercial projects. Suitable for both exterior and interior applications, the system allows spacing and finish selections to be tailored to the design intent. Its lightweight construction supports a straightforward installation across new builds, renovations and retrofit projects. When used as part of a considered facade design, the battens can assist with ventilation, sun shading and weather protection, helping support greater building comfort and efficiency. Durable, low-maintenance and highly versatile, Trusion aluminium battens are built for contemporary architectural applications.
FEATURES

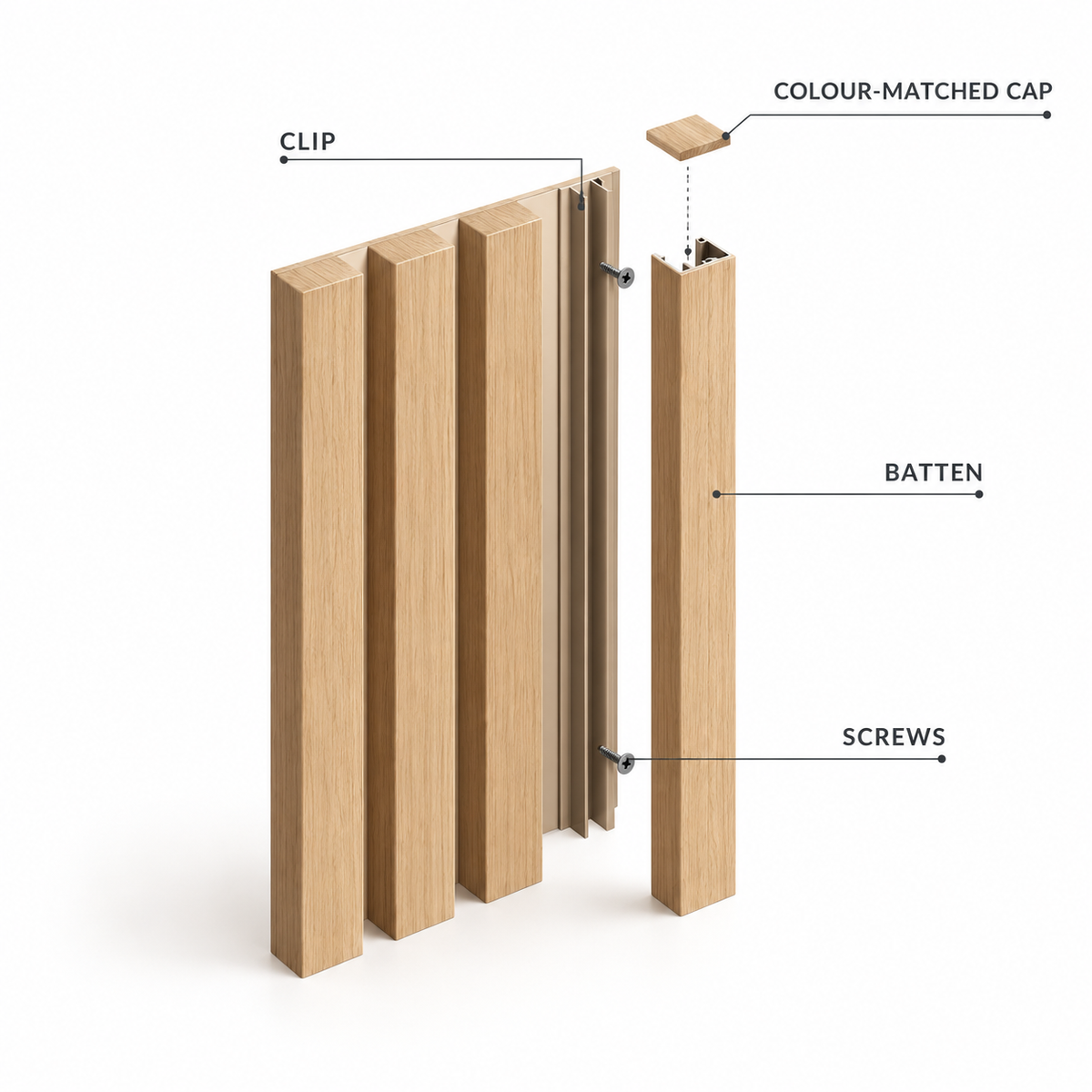

WELD-FREE INSTALLATION
Trusion’s two-piece batten system clicks into place without welding, making installation simpler and reducing labour time and costs.
STRONG + DURABLE
Made from durable aluminium, Trusion battens deliver lasting strength and a low-maintenance finish that’s built to last.
SPECIFICATIONS
Product Details
Product Details
Material: 6063 T6 Temper Extruded Aluminum Alloy.
Length: 5800mm
Profiles: Custom profiles avaliable.
Finish: Sublimated Italian Film Wood Grain surface with a Powder Coated Base.
Availability: Usually 2-4 weeks from order to dispatch.
Warranty: 15 year limited.
Maintenance: Periodic washing with a soft broom and water while also engaging a PH neutral detergent.
Sustainability: 100% Recyclable Aluminium.
Fire-Rated
Fire-Rated
AS/NZS 1530.1-1994 - Combustibility Testing For Materials.
Customisation
Customisation
Spacing: Leave a small gap between boards to create a shadowline effect.
Sequencing: Mix different board sizes to create a more varied look.
Colouring: Combine different timber colours for a more natural finish.
